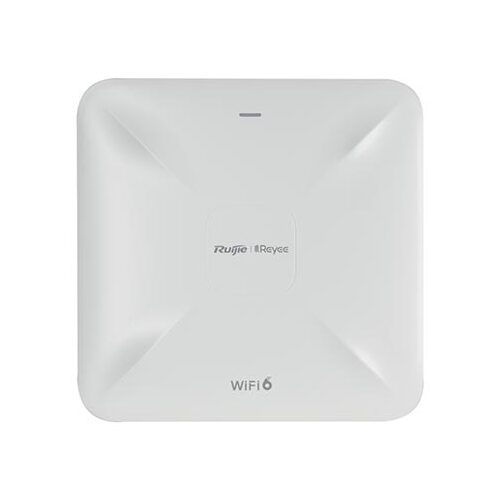

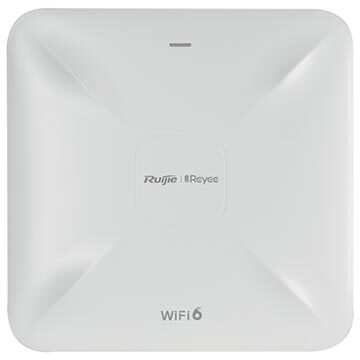

Wi-Fi 6 Access Point AX3200 802.11ax Dual-bands Ultra-High Speed 3.2 Gbps

57MM-AP05 Ruijie No. RG-RAP2260(E)

RRP $547.00
SAVE $140.00 (26%)
In Stock

Calculate Shipping

Free pick-up from store - $0.00
Free pickup from Gordon Macdonald's Wollongong Store. 93 Auburn Street, Wollongong NSW 2500. Open 06.30-16.30 Mon-Fri, and 07.30-11.00 Sat.

Product Summary

The 57MM-AP05 is an ultra-high performance multi-gigabit Wi-Fi 6 ceiling/wall mount access point for covering large indoor areas with gigabit Wi-Fi coverage. Suitable for use in multi-network commercial, hotel and other large indoor environments, the AP05 will provide seamless high-speed bidirectional internet coverage. The AP05 is an AX3200 Wi-Fi 6 dual band ceiling/wall mount Wi-Fi access point supporting 802.11ax 3.2 Gbps and allows up to 512 users per access point.

Features and Benefits

  • Wi-Fi 6 (802.11ax) supporting speeds up to 3202 Mbps (Concurrent, high-speed wireless access of 800Mbps at 2.4GHz and 2402Mbps at 5Ghz)
  • Compliant with 802.11a/b/g/n/ac/ax Wi-Fi protocols
  • Free lifetime Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on the Ruijie Cloud app
  • AP05 features 2x LAN with one of the ethernet ports upgraded to a multi-gigabit ethernet (2.5GE) port to break through the bottleneck of transmission performance.
  • Perfect for use in commercial spaces, hotels, car parks, schools etc
  • Up to 512 simultaneous users per access point



Hardware Specifications
Radio Dual-stream dual-band
Protocol Concurrent 802.llax, 802.llac wave2/wavel, 802.lla/b/g/n
Operating Bands 802.llb/g/n : 2.4G ~ 2.4835GHz 802.lla/n/ac/ax : SG: 5.150 ~ 5.350GHz , 5.725 ~ 5.850GHz (country specific)
Antenna Internal antennas ( 2.4G: 3dBi , SG: 3dBi)
Spatial Streams 2.4G 4x4MIMO 5G 4x4MIMO
Max Throughput Up to 800Mbps at 2.4G Up to 2402Mbps at 5G 3.202Gbp per AP
Modulation OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps , 16QAM@24Mbps, 64QAM@48/54Mbps DSSS: DBPSK@lMbps , DQPSK@2Mbps , and CCK@S.5/llMbps MIMO-OFDM: BPSK, QPSK, 16QAM , 64QAM , 256QAM and 1024QAM OFDMA
Receive Sensitivty 1llb:- 96dBm ( lMbps) - 93dBm ( SMbps) -89dBm ( llMbps)lla/g : -91dBm ( 6Mbps) -85dBm ( 24Mbps) -80dBm ( 36Mbps) -74dBm ( 54Mbps) lln: - 90dBm ( MCSO) -70dBm ( MCS7)-89dBm ( MCS8) -68dBm ( MCSlS ) llac: 20MHz: - 88dBm ( MCSO) -63dBm ( MCS9) 40MHz: - 85dBm ( MCSO) -60dBm ( MCS9) 80MHz: - 85dBm ( MCSO) -60dBm ( MCS9)Wi-Fi 6: 80MHz: - 82dBm ( MCSO)- 57dBm ( MCS9) -52dBm ( MCSll )
Maximum output power of the transmitter (single stream) 2.4GHz (2.4~2.4835GHz) : 23dBm 5GHz (5.150~5.250GHz,5.72 5~5.850GHz) : 23dBm ( country-specific , comply with local laws )
Adjustable Power ldBm
Dimensions 220mmx220mmx35 mm (excluding mounting kits)
Weight 1.05kg (excluding mounting kits)
Service Ports 110/100/l000M/2.SG Base-T Ethernet ports, supports PoE; 1 10/100/l000M Base-T ,Ethernet ports
Management Port NA
LED Indicator Single indicator (green light)
Power Supply Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory), 802.3at PoE (Warning:802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier)
Power Consumption ≤25.4W
Environment Operating temperature: ° 0 C ~40°C
Storage temperature: -40°c ~ 70°c
Operating humidity: 5% ~95% ( non-condensing )
Storage humidity: 5% ~95% ( non-condensing )
Installation Ceiling/wall- mountable
Safety Standard GB4943, IEC 62368-1
EMC Standard GB9254 , EN301 489 , EN50155 , ENS 0121 , EN55032 , EN 61000 , EN55035
Vibration Standard IEC61373
Radio Standard EN300 328, EN301 893
MTBF 400000H
Shipping Weight 1.0500kg
Shipping Width 0.220m
Shipping Height 0.035m
Shipping Length 0.220m
Shipping Cubic 0.001694000m3
