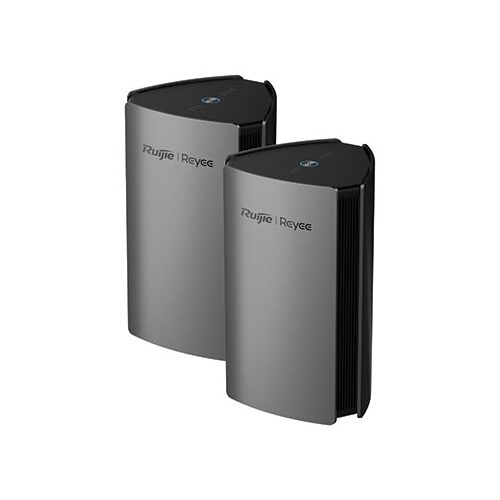

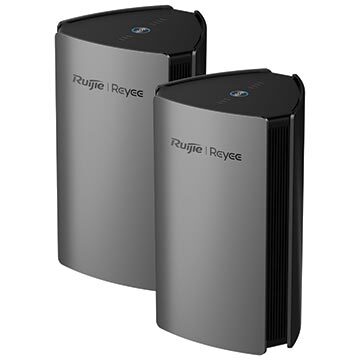

Wi-Fi 6 Whole Home Mesh Router/Repeater AX3200 (2 Pack)

57MM-MR02-2 Ruijie No. RG-M32 (2PK)

$526.00
RRP $708.00
SAVE $182.00 (26%)
In Stock


Calculate Shipping



Free pick-up from store - $0.00
Free pickup from Gordon Macdonald's Wollongong Store. 93 Auburn Street, Wollongong NSW 2500. Open 06.30-16.30 Mon-Fri, and 07.30-11.00 Sat.

Product Summary

The MR02-2 is a convenient twin pack of AX3200 in-home meshing Wi-Fi 6 routers or repeaters designed to cover whole home spaces with fast and reliable Wi-Fi. This new-generation Wi-Fi 6 mesh router provides super-fast wireless internet thanks to its gigabit dual-band (2.4GHz and 5GHz) and a combined speed of up to 3.2Gbps. The aesthetically pleasing design allows you to blend it into any decor seamlessly. Also available in a single pack to cover smaller areas if required (57MM-MR02). Simple and easy to set up using the free Ruijie application.


Features and Benefits

  • Aesthetically pleasing high-performance Wi-Fi 6 meshing router/repeater twin pack for the whole home's reliable wireless coverage.
  • WiFi-6 (802.11ax) supporting speeds up to 3202 Mbps (Concurrent, high-speed wireless access of 800Mbps at 2.4GHz and 1402Mbps at 5Ghz)
  • Simple plug and play using the free Ruijie cloud application on PC, Android or iOS.
  • MR02-2 features 1 x WAN and 3 x LAN Gigabit ethernet ports per unit, four dual-band antennas, and eight signal amplifiers, providing large-area Wi-Fi coverage.
  • Perfect for use in homes and small office/commercial spaces where cabling is impossible.
  • Smart signal indicator, find the best spot to place a sub-router

(57MM-MR02-2)

Specifications

Hardware Specifications
Dimensions (W×D×H) 119 mm × 119 mm × 200 mm
(4.7 in. × 5 in. × 7.9 in. antennas not included)
Weight 0. 66kg (packages not included)
Wi-Fi Standards Wi-Fi 6 (802.11ax)
MIMO 2.4 GHz, 4x4, MU-MIMO
5 GHz, 4x4, MU-MIMO
Max. Wi-Fi Speed 2.4 GHz: 800 Mbps
5 GHz: 2402 Mbps
Channel Width 2.4 GHz: Auto/20/40 MHz
5 GHz: Auto/20/40/80/ MHz
Antennas 4 dual-band
Antennas Type Internal Omnidirectional
Antenna Gain 2.4 GHz: 4dBi
5 GHz: 4dBi
WAN Port 1×10/100/1000 Base-T
LAN Ports 2×10/100/1000 Base-T
Recommended Users 60
Max. Users 192
Power Supply DC 12V/2.5A
Power Consumption < 30 W
Operation Frequency Bands 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz
802.11a/n/ac: 5.150 GHz to 5.350 GHz
802.11a/n/ac/ax: 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz
country-specific restrictions apply
Transmit Power CE EIRP: ≤20dBm (2.4GHz)
≤27dBm (5GHz)
≤20dBm 2400~2483.5MHz(Bluetooth)
2400~2483.5MHz ≤ 20dBm(EIRP)
5150~5350MHz ≤ 23dBm(EIRP)
5470~5725MHz ≤ 30dBm(EIRP)
5725~5850MHz ≤ 30dBm(EIRP)
Receive Sensitivity 2.4 GHz:
802.11b: -96 dBm(1 Mbps)
802.11g: -91 dBm(6 Mbps), -85 dBm(54 Mbps)
802.11n: -90dBm(MCS0), -85 dBm(MCS7)
5 GHz:
802.11n: -90 dBm(MCS0), -70 dBm(MCS7)
802.11a: -88 dBm(6 Mbps), -60 dBm(54 Mbps)
802.11ac: -82dBm(MCS0), -57dBm(MCS7), -52dBm(MCS9)
Operating Temperature -10 °C to +45 °C (14 °F to 113 °F)
Operating Humidity 5% to 95% Noncondensing
Certifications CE, RoHS
Wireless
OFDMA Yes
MU-MIMO Yes
BSS Coloring Yes
Maximum Number of SSIDs 6
SSID Hiding Yes
Band Steering Yes
Guest Wi-Fi Yes
WPA/WPA2 Yes
WPA3 -
Roaming Layer 3 Roaming
Blacklist Yes
Reyee Mesh Yes
Mesh Pairing by Hardware Yes
Mesh Pairing by Mesh
Button
Yes
Mesh Pairing by Eweb Yes
Recommended Hop Count ≤2
Wi-Fi Optimization Yes
QoS (WMM) Yes
WPS -
Transmission Power
Adjustment
Yes
Hardware
CPU MT7622B+MT7911AN+MT7915AN
Flash 16 MB
RAM/SDRAM 256 MB
Color Black
System LED Indicator Yes
Reyee Mesh LED Indicator Yes
Reyee Mesh Button Yes
Power Button -
Reset Button Yes
DC Connector Dimensions Outer Diameter: 5.5 mm
Inner Diameter: 2.0 mm
Length: 11.5 mm
(Outer Diameter: 0.22 in.
Inner Diameter: 0.07 in.
Length: 0.39 in. )
WAN
Static IP Yes
DHCP Yes
PPPoE Yes

SKU 57MM-MR02-2
Shipping Weight 0.6600kg
Shipping Width 0.190m
Shipping Height 0.200m
Shipping Length 0.190m
Shipping Cubic 0.007220000m3
