Wi-Fi 5 Access Point AC1300 802.11ac Dual-bands 1.3Gbps, 4 x GbE LAN, Wall Mount (Bracket Sold Separately)

57MM-AP09 Ruijie No. RG-RAP1200(P)

RRP $278.00
SAVE $72.00 (26%)
In Stock

Calculate Shipping

Free pick-up from store - $0.00
Free pickup from Gordon Macdonald's Wollongong Store. 93 Auburn Street, Wollongong NSW 2500. Open 06.30-16.30 Mon-Fri, and 07.30-11.00 Sat.

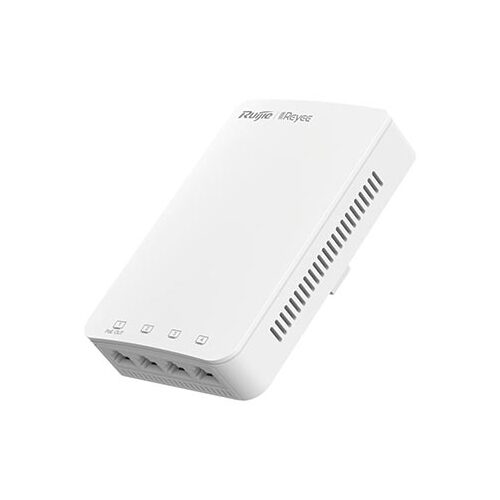

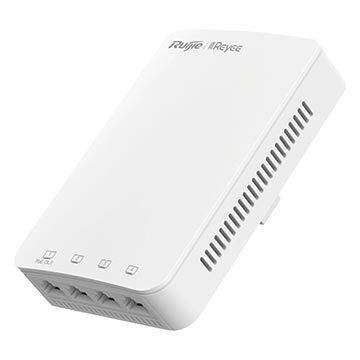

The 57MM-AP09 wall mount Access Point is Wi-Fi 5 (802.11ac) with a built-in four-port switch. This wireless AP is designed for hotels, offices, apartments and townhouses, featuring an exquisite design and easy deployment. In addition, the AP09 features 4 x GbE LAN ports, perfect for deployment in environments like hotel rooms and education rooms where devices need high-speed wired connectivity such as IPTV etc.

Manage the AP09 wall AP with the free enterprise-grade Ruijie Cloud Service, including fast provisioning, flexible authentication and stable wireless even in an extreme environment.


  • Wi-Fi 5 (802.11ac) supporting speeds up to 1267 Mbps (Concurrent, high-speed wireless access of 400Mbps at 2.4GHz and 867Mbps at 5Ghz)
  • Supports concurrent 802.11ac wave2, wave1, 802.11a/b/g/n protocols
  • Free lifetime Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on the Ruijie Cloud app.
  • Wall mount AP featuring 4 x LAN interfaces to support more devices and services. (Wall mount sold separately, 57MM-AP09-MNT)
  • Perfect for use in commercial spaces, hotels, car parks, schools etc
  • Up to 110 simultaneous users (per AP)





Basic Feature
Radio Dual-stream dual-band
Protocol Concurrent 802.11ac Wave2, Wave1, 802.11a/b/g/n
Operating Bands 802.11b/g/n: 2.4 GHz ~ 2.4835 GHz
802.11a/n/ac: 5 GHz: 5.150 GHz ~ 5.350 GHz, 5.725 GHz ~ 5.850 GHz.
(Note:The operating bands vary according to different countries)
Antenna Built-in Antenna (2.4 GHz: 2 dBi, 5 GHz: 2 dBi)
Spatial Streams 2.4 GHz: 2x2 MIMO, 5 GHz: 2x2 MIMO
Max Throughput 2.4 GHz: up to 400 Mbps, 5 GHz: up to 867 Mbps, Access rate per AP: 1.267 Gbps
Modulation OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16-QAM@24 Mbps, 64-
QAM@48/54 Mbps DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, and
CCK@5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and
Receive Sensitivity l11b: -91 dBm(1 Mbps), -88 dBm(5 Mbps), -85 dBm(11 Mbps) 11a/g:
-89 dBm(6 Mbps), -80 dBm(24 Mbps), -76 dBm(36 Mbps), -71 dBm(54
Mbps) 11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65
dBm@MCS15 11ac HT20: -83 dBm(MCS0), -57 dBm(MCS9) 11ac HT40:
-79 dBm(MCS0), -57 dBm(MCS9) 11ac HT80: -76 dBm(MCS0), -51
Maximum Transmit Power CE EIRP:
≤19 dBm (2.4 GHz)
≤18 dBm (5 GHz)
country-specific restrictions apply
Adjustable Power 1dBm
Dimensions 126 mm x 86 mm x 50 mm
Weight 0.24 kg
Service Ports Front: 4 10/100/1000Base-T Ports,
LAN1 supports IEEE.802.3af PoE
Rear: 1 10/100/1000Base-T (PoE in)
LED Indicator 1 LED indicator
Power Supply Support PoE (802.3af/at)
Power Consumption ≤8W
Environment Operating Temperature : 0°C ~ 40°C
Storage Temperature : -40°C ~ 70°C
Operating humidity : 0% ~ 100%, non-condensing
Storage humidity : 0% ~ 100% , non-condensing
Installation Wall plate installation
Safety Standard GB4943, IEC 62368-1
EMC Standard GB9254, EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035
Vibration Standard IEC61373
Radio Standard SRRC certification, EN300 328, EN301 893
MTBF >250000H
WLAN Maximum number of clients: 512
Recommended number of clients: 100
Up to 8 SSID
Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation
Roaming Support layer 2 and layer 3 roaming
Security Support PSK authentication
Support static blacklist and whitelist
Support WPA ( TKIP ) , WPA2 ( AES ) ,WPA-PSK data encryption
Routing Support static IP address, DHCP, PPPoE Dial up
Management and Maintenance Support unified networking of all network equipment Support local or
remote management with Ruijie Cloud app Support local management with
web Support remote management with Ruijie Cloud platform
Mounting Screw 2
Shipping Weight 0.2400kg
Shipping Width 0.120m
Shipping Height 0.100m
Shipping Length 0.086m
Shipping Cubic 0.000516000m3
