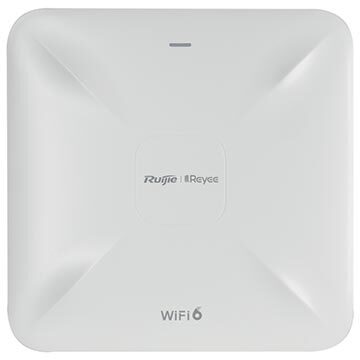

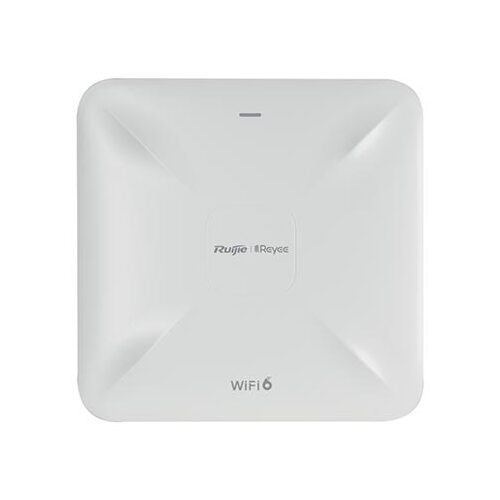

Wi-Fi 6 Access Point AX3000 802.11ax Dual Bands 2.97 Gbps
57MM-AP10 Ruijie No. RG-RAP2260
$270.00
RRP $364.00
SAVE $94.00 (26%)
In Stock
Product Summary
The 57MM-AP10 is a cost-effective ultra high-performance multi-gigabit Wi-Fi 6 ceiling/wall mount access point for covering large indoor areas with gigabit Wi-Fi coverage. Suitable for use in multi-network commercial, hotel and other large indoor environments, the AP10 will provide seamless high-speed bidirectional internet coverage. The AP10 is an AX3000 Wi-Fi 6 dual band ceiling/wall mount Wi-Fi access point supporting 802.11ax with 2.97 Gbps and allows up to 512 users per access point.
Features and Benefits
- WiFi-6 (802.11ax) supporting speeds up to 2976 Mbps (Concurrent, high-speed wireless access of 574Mbps at 2.4GHz and 2402Mbps at 5Ghz)
- Compliant with 802.11a/b/g/n/ac/ax Wi-Fi protocols
- Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimising and maintenance on the Ruijie Cloud app.
- Featuring 2 x LAN with one of the ethernet ports upgraded to a multi-gigabit Ethernet (2.5GE) port to break through the bottleneck of transmission performance.
- Perfect for use in commercial spaces, hotels, car parks, schools etc
- Up to 512 simultaneous users (per AP)
(57MM-AP10)
Specifications
| Basic Feature | |
|---|---|
| Wi-Fi Standards | Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 5 (IEEE 802.11ac Wave 2) Wi-Fi 4 (IEEE 802.11n) IEEE 802.11a IEEE 802.11b/g |
| MIMO | 2.4GHz, 2×2, MU-MIMO 5GHz, 2×2, MU-MIMO |
| Max. Wi-Fi Speed | 2.4GHz: 574Mbps 5GHz: 2402Mbps |
| Antenna | 5 |
| Antenna Type | Built-In Omnidirectional |
| Antenna Gain | 2.4 GHz: 3 dBi 5 GHz: 3 dBi |
| Transmit Power | EIRP: ≤31dBm (2.4GHz) ≤32.7dBm (5GHz) |
| Fixed Ports | 1 x 100/1000/2500 Base-T port 1 x 10/100/1000 Base-T port 1 x DC port 1 x Reset button |
| Max. Clients | 512 |
| Recommended Clients | 110 |
| Max. SSIDs | 8 |
| Recommended Wi-Fi Coverage Radius |
2.4GHz: 40 meters 5GHz: 70 meters The Wi-Fi coverage is related to the installation environment of the access point |
| Max. Wi-Fi Coverage Radius | 150 meters |
| Operation Frequency Bands | 802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz |
| Software Feature | |
| WLAN Basic Features | |
| Power Adjustment | Yes |
| Frequency Bandwidth | 2.4 GHz: Auto/20/40 MHz 5 GHz: Auto/20/40/80/160 MHz |
| Roaming | Layer 2 roaming Layer 3 roaming |
| OFDMA | Yes |
| Beamforming | Yes |
| WMM | Yes |
| Radar Signal Detection and Frequency Hopping (DFS) |
Yes |
| WLAN Security | |
| Max Wi-Fi Password Length | 16 Digits |
| Security Mode | WPA-PSK, WPA2-PSK, WPA/WPA2-PSK |
| Blacklist and Whitelist | Yes |
| Enhanced User Experience | |
| Wi-Fi Optimization | Yes |
| STA Limit | Yes |
| Removing Low-RSSI STAs | Yes |
| Adjusting Sending Rate of Beacon and Probe Response |
Yes |
| Syslog Recording Why Users Lose Connection |
Yes |
| Auto Channel and Power Adjustment on Cloud |
Yes |
| RSSI Threshold for STA Access |
Yes |
| Load Balancing | Yes |
| Networks | |
| Network Access Mode | PPPoE Client DHCP Client Static IP |
| VLAN | Yes |
| DHCP Server | Yes |
| Adjusting Sending Rate of Beacon and Probe Response |
Yes |
| System | |
| Cloud Management | Yes |
| APP Management | Yes |
| APP Upgrade | Yes |
| APP Restart | Yes |
| Scheduled Restart | Yes |
| Default Access/Password | 10.44.77.253 No Password Required by Default |
| Local Upgrade | Yes |
| Online Upgrade | Yes |
| Dual-bin Backup | Yes |
| Factory Reset | Yes |
| Language | Chinese English |
| System Log | Yes |
| Diagnostics | Yes |
| Network Check | Yes |
| Physical | |
| LED Indicator | 1 × System LED indicator |
| Buttons | 1 × Reset button |
| Dimensions (W × D × H) | 194 mm x 194 mm x 45.1 mm (Without Mounting Bracket) |
| Weight | ≤ 0.65 kg (Without Mounting Bracket) |
| DC Port Dimensions | Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm |
| Installation | Ceiling-Mountable |
| Mounting Bracket Dimensions (W × D × H) |
88 mm x 82 mm x 7.8 mm |
| Mounting Hole Pattern | 53 mm |
| Mounting Hole Diameter | 6.5 mm |
| Pole Diameter | NA |
| Power Supplies | IEEE 802.3at PoE DC 12V/2A |
| Power Consumption | ≤ 18W |
| PoE Power Budget | NA |
| Environmental | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 95% Noncondensing |
| Storage Humidity | 5% to 95% Noncondensing |
| IP(Ingress Protection) | NA |
| Port Surge | 4kV |
| MTBF | >400000H |
| SKU | 57MM-AP10 |
| Shipping Weight | 0.6500kg |
| Shipping Width | 0.194m |
| Shipping Height | 0.045m |
| Shipping Length | 0.194m |
| Shipping Cubic | 0.001693620m3 |
