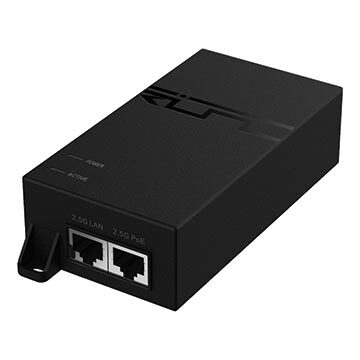

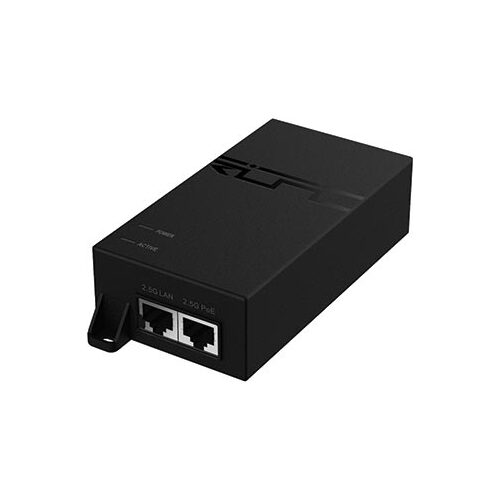

60W 2.5 Gigabit PoE++ Power Inserter

57MM-APPI-60 Ruijie No. RG-POE-50-60W-MG

$72.00
RRP $97.00
SAVE $25.00 (26%)
In Stock


Calculate Shipping



Free pick-up from store - $0.00
Free pickup from Gordon Macdonald's Wollongong Store. 93 Auburn Street, Wollongong NSW 2500. Open 06.30-16.30 Mon-Fri, and 07.30-11.00 Sat.

Product Summary

The 57MM-APPI-60 is a PoE++ power inserter capable of supplying up to 60W. This power inserter is perfect for our wireless access points, SOHO switches, IP phones, webcams and PoE cameras, especially PTZ cameras that can be power-hungry. The APPI-60 is IEEE 802.3bt (Type 3) compliant with single input and output RJ45 2.5 Gbps ports supporting ultra high-speed data transfer.


Features and Benefits

  • PoE++ (Type 3) power inserter delivering up to 60 Watts of power
  • IEEE 802.3 bt compliant with 2.5 Gbps ports supporting ultra high-speed data transfer.
  • Safe for low-power devices, it delivers only the energy they need.
  • 2 x RJ45 MultiGigabit 10/100/1000/2500Mbps Ports
  • It can power many PoE devices, WiFi access points, IP PTZ cameras, etc.
  • Automatic detection and protection of non-standard Ethernet terminals

(57MM-APPI-60)

Specifications

Hardware Specifications
Dimensions 137.4 mm x 62.3 mm x 32.6 mm
5.41 in. x 2.45 in. x 1.28 in. )
Weight 225 g (7.94 0z)
Output Voltage 56V
@ 1.08A
Gigabit LAN Port 2.5G
Remote Reset Capability No
Reset Button No
Rated Voltage 100 240V AC @ 50/60Hz
Input Current 1.5A@120VAC,
1.2A@240VAC
Inrush Current <60A Peak @ 120VAC,
<120A Peak @ 230VAC
Average active efficiency 90.32%
Efficiency at low load
(10%)
83.44%
No load power
consumption
0.130W
Output Ripple ≤1%
Switching Frequency 65KHz
Line Regulation ≤ 5
Load Regulation ≤ 5
2 Pair Powering -
4 Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C ( 22 to 158° F)
Operating Humidity 35 to 95% Noncondensing

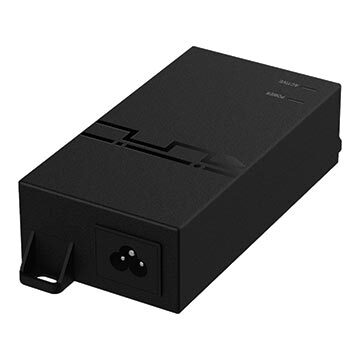

AC Connector 3 pole appliance inlet type C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 65V Power
Max. Surge Discharge 500A(8/20us)power
Peak Pulse Current 36
A (10/1000us)Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, CCC
Warning Operation
of this equipment in a residential environment could cause radio interference.
SKU 57MM-APPI-60
Shipping Weight 0.2250kg
Shipping Width 0.138m
Shipping Height 0.033m
Shipping Length 0.063m
Shipping Cubic 0.000286902m3
