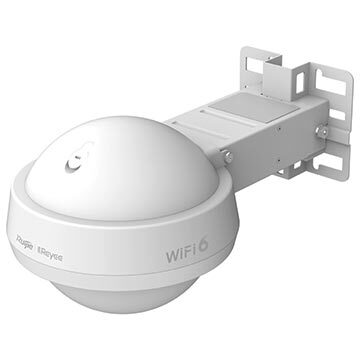

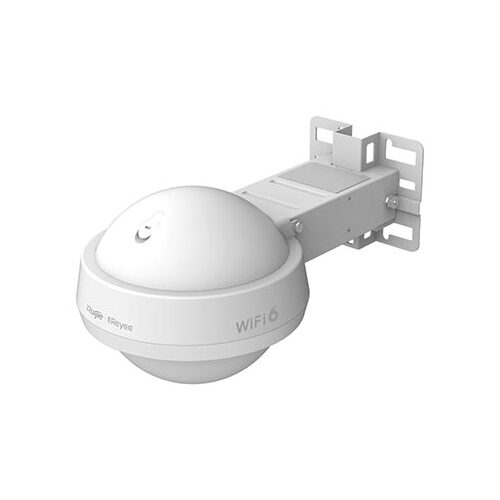

Wi-Fi 6 Outdoor Omnidirectional Access Point AX3000 802.11ax Dual Bands 2.97 Gbps with SFP Fibre Port

57MM-AP12 Ruijie No. RG-RAP6262

$482.00
RRP $648.00
SAVE $166.00 (26%)
In Stock


Calculate Shipping



Free pick-up from store - $0.00
Free pickup from Gordon Macdonald's Wollongong Store. 93 Auburn Street, Wollongong NSW 2500. Open 06.30-16.30 Mon-Fri, and 07.30-11.00 Sat.

Product Summary

The 57MM-AP12 Wi-Fi 6 outdoor omnidirectional access point is a high-power outdoor omnidirectional dual-band access point designed for use in scenarios such as caravan parks, town centres, villas, parks, scenic spots, and any other suitable outdoor applications to provide high-speed Wi-Fi to multiple end users. The AP12 features an inbuilt SFP fibre port allowing for long-range deployments from the data centre, up to 20km over single-mode fibre.


Features and Benefits

  • Outdoor high-range Wi-Fi 6 (802.11ax) supporting speeds up to 2976 Mbps (Concurrent, high-speed wireless access of 574Mbps at 2.4GHz and 2402Mbps at 5Ghz)
  • Built-in gigabit SFP port supporting up to 20km transmission from datacentre over single-mode fibre for long-range deployment.
  • Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud app.
  • Featuring maximum Wi-Fi coverage range of 100m for 2.4GHz and 300m for 5GHz
  • Perfect for use in outdoor settings like caravan parks, villas, town centres, sports grounds and parks etc
  • Compliant with 802.11a/b/g/n/ac/ax Wi-Fi protocols

(57MM-AP12)

Specifications

Basic Feature
Wi-Fi Standards Wi-Fi 6 (IEEE 802.11ax)
Wi-Fi 5 (IEEE 802.11ac Wave 2)
Wi-Fi 4 (IEEE 802.11n)
IEEE 802.11a
IEEE 802.11b/g
MIMO 2.4GHz, 2×2, MU-MIMO
5GHz, 2×2, MU-MIMO
Max. Wi-Fi Speed 2.4GHz: 574Mbps
5GHz: 2402Mbps
Antenna 5
Antenna Type Built-In Omnidirectional
Antenna Gain 2.4 GHz: 3 dBi
5 GHz: 4 dBi
Transmit Power EIRP:
≤32dBm (2.4GHz)
≤34.7dBm (5GHz)
country-specific restrictions apply
Myamar:
2400 MHz~2483.5 MHz ≤ 20 dBm
5150 MHz~5350 MHz ≤ 23 dBm
5470 MHz~5850 MHz ≤ 25 dBm
Thailand:
2400 MHz~2483.5 MHz ≤ 20 dBm
5150 MHz~5350 MHz ≤ 23 dBm
5470 MHz~5725 MHz ≤ 25 dBm
5725 MHz~5850 MHz ≤ 30 dBm
Fixed Ports 1 × 10/100/1000 Base-T port
1 × 1GBase-X SFP port
1 × DC port
1 × Reset button
Max. Clients 512
Recommended Clients 110
Max. SSIDs 8
Recommended Wi-Fi
Coverage Radius
2.4GHz: 50 meters
5GHz: 150 meters
The Wi-Fi coverage is related to the installation environment of the access point.
Max. Wi-Fi Coverage Radius 300 meters
Operation Frequency Bands 802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz
802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz,
5.725 GHz to 5.850 GHz
country-specific restrictions apply
Software Feature
WLAN Basic Features
Power Adjustment Yes
Frequency Bandwidth 2.4 GHz: Auto/20/40 MHz
5 GHz: Auto/20/40/80/160 MHz
Roaming Layer 2 roaming
Layer 3 roaming
OFDMA Yes
Beamforming Yes
WMM Yes
Radar Signal Detection and
Frequency Hopping (DFS)
Yes
WLAN Security
Max Wi-Fi Password Length 16 Digits
Security Mode WPA-PSK, WPA2-PSK, WPA/WPA2-PSK
Blacklist and Whitelist Yes
Enhanced User Experience
Wi-Fi Optimization Yes
STA Limit Yes
Removing Low-RSSI STAs Yes
Adjusting Sending Rate
of Beacon and Probe
Response
Yes
Syslog Recording Why
Users Lose Connection
Yes
Auto Channel and Power
Adjustment on Cloud
Yes
RSSI Threshold for STA
Access
Yes
Load Balancing Yes
Networks
Network Access Mode PPPoE Client
DHCP Client
Static IP
VLAN Yes
DHCP Server Yes
Adjusting Sending Rate
of Beacon and Probe
Response
Yes
System
Cloud Management Yes
APP Management Yes
APP Upgrade Yes
APP Restart Yes
Scheduled Restart Yes
Default Access/Password 10.44.77.253
No Password Required by Default
Local Upgrade Yes
Online Upgrade Yes
Dual-bin Backup Yes
Factory Reset Yes
Language Chinese
English
System Log Yes
Diagnostics Yes
Network Check Yes
Physical
LED Indicator 1 × System LED indicator
1 × Wi-Fi LED indicator
1 × SFP LED indicator
1 × LAN LED indicator
Buttons 1 × Reset button
Dimensions (W × D × H) 230 mm x 230 mm x 195 mm (Without Mounting Bracket)
Weight ≤ 1.4 kg (Without Mounting Bracket)
DC Port Dimensions Outer Diameter: 5.5 mm
Inner Diameter: 2.1 mm
Length: 10 mm
Installation Wall-Mountable/Pole-Mountable
Mounting Bracket
Dimensions (W × D × H)
155mm x 129mm x 35mm
Mounting Hole Pattern 65 mm x 110 mm
Mounting Hole Diameter 9 mm
Pole Diameter 70 mm to 140 mm
Power Supplies IEEE 802.3at PoE
DC 12V/2A
Power Consumption ≤ 24W
PoE Power Budget NA
Environmental
Operating Temperature -30°C ~ 65°C
Storage Temperature -40°C ~ 85°C
Operating Humidity 0% ~ 100% Noncondensing
Storage Humidity 0% ~ 100% Noncondensing
IP(Ingress Protection) IP68
Port Surge 4kV
MTBF >400000H
SKU 57MM-AP12
Shipping Weight 0.2500kg
Shipping Width 0.155m
Shipping Height 0.100m
Shipping Length 0.129m
Shipping Cubic 0.000699825m3
