Wi-Fi 6 Whole Home Mesh Router-Repeater AX1800

57MM-MR01 Ruijie No. RG-M18

$197.00
RRP $265.00
SAVE $68.00 (26%)
In Stock


Calculate Shipping



Free pick-up from store - $0.00
Free pickup from Gordon Macdonald's Wollongong Store. 93 Auburn Street, Wollongong NSW 2500. Open 06.30-16.30 Mon-Fri, and 07.30-11.00 Sat.

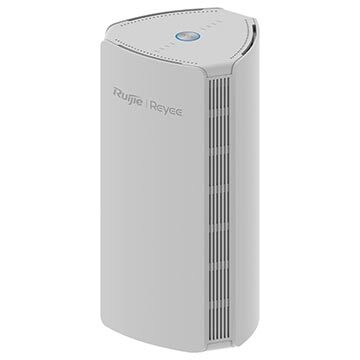

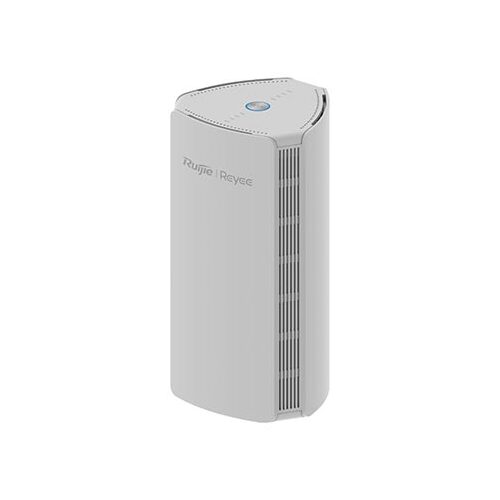

The MR01 is an AX1800 in-home meshing Wi-Fi 6 router or Wi-Fi repeater designed to cover whole home spaces with fast and reliable Wi-Fi. This new-generation Wi-Fi 6 mesh router provides super-fast wireless internet thanks to its gigabit dual-band (2.4GHz and 5GHz) and a combined speed of up to 1.8Gbps. The aesthetically pleasing design allows you to blend it into any decor seamlessly. Also available in a convenient twin pack to cover larger areas if required (57MM-MR01-2). Simple and easy to set up using the free Ruijie application.

(57MM-MR01)

Specifications

Hardware Specifications
Dimensions (W×D×H) 91.5 mm × 91.5 mm × 180.6 mm (3.6 in. × 3.6 in. × 7.1 in. antennas not included)
Weight 0. 369kg (packages not included)
Wi-Fi Standards Wi-Fi 6 (802.11ax)
MIMO 2.4 GHz, 2×2, MU-MIMO
5 GHz, 2×2, MU-MIMO
Max. Wi-Fi Speed 2.4 GHz: 574 Mbps
5 GHz: 1201 Mbps
Channel Width 2.4 GHz: Auto/20/40 MHz
5 GHz: Auto/20/40/80/ MHz
Antennas 4
Antennas Type Internal Omnidirectional
Antenna Gain 2.4 GHz: 4.0dBi
5 GHz: 6.8dBi
WAN Port 1×10/100/1000 Base-T
LAN Ports 2×10/100/1000 Base-T
Recommended Users 48
Max. Users 192
Power Supply DC 12V/1.5A
Power Consumption < 18 W
Operation Frequency Bands 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz
802.11a/n/ac: 5.150 GHz to 5.350 GHz
802.11a/n/ac/ax: 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz
country-specific restrictions apply
Transmit Power General:
CE EIRP: ≤20dBm (2.4GHz)
≤27dBm (5GHz)
≤20dBm 2400~2483.5MHz(Bluetooth)
Myanmar:
2400~2483.5MHz ≤ 20dBm(EIRP);
5150~5350MHz ≤ 23dBm(EIRP);
5470~5725MHz ≤ 30dBm(EIRP);
5725~5850MHz ≤ 30dBm(EIRP);
Receive Sensitivity 2.4 GHz:
802.11b: -96 dBm(1 Mbps)
802.11g: -91 dBm(6 Mbps), -85 dBm(54 Mbps)
802.11n: -90dBm(MCS0), -85 dBm(MCS7)
5 GHz:
802.11n: -90 dBm(MCS0), -70 dBm(MCS7)
802.11a: -88 dBm(6 Mbps), -60 dBm(54 Mbps)
802.11ac: -82dBm(MCS0), -57dBm(MCS7), -52dBm(MCS9)
Operating Temperature -10 °C to +45 °C (14 °F to 113 °F)
Operating Humidity 5% to 95% Noncondensing
Certifications CE, RoHS
Wireless
OFDMA Yes
MU-MIMO Yes
BSS Coloring Yes
Maximum Number of SSIDs 6
SSID Hiding Yes
Band Steering Yes
Guest Wi-Fi Yes
WPA/WPA2 Yes
WPA3 -
Roaming Layer 3 Roaming
Blacklist Yes
Reyee Mesh Yes
Mesh Pairing by Hardware Yes
Mesh Pairing by Mesh
Button
Yes
Mesh Pairing by Eweb Yes
Recommended Hop Count ≤2
Wi-Fi Optimization Yes
QoS (WMM) Yes
WPS -
Transmission Power
Adjustment
Yes
Hardware
CPU MT7621A+MT7905DAN+MT7975DN
Flash 16 MB
RAM/SDRAM 256 MB
Color White
System LED Indicator Yes
Reyee Mesh LED Indicator Yes
Reyee Mesh Button Yes
Power Button -
Reset Button Yes
DC Connector Dimensions Outer Diameter: 5.5 mm
Inner Diameter: 2.0 mm
Length: 11.5 mm
(Outer Diameter: 0.22 in.
Inner Diameter: 0.07 in.
Length: 0.39 in. )
WAN
Static IP Yes
DHCP Yes
PPPoE Yes
SKU 57MM-MR01
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.200m
Shipping Length 0.100m
Shipping Cubic 0.002000000m3
