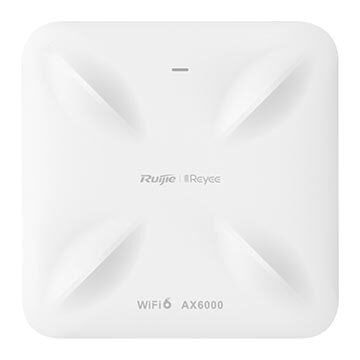

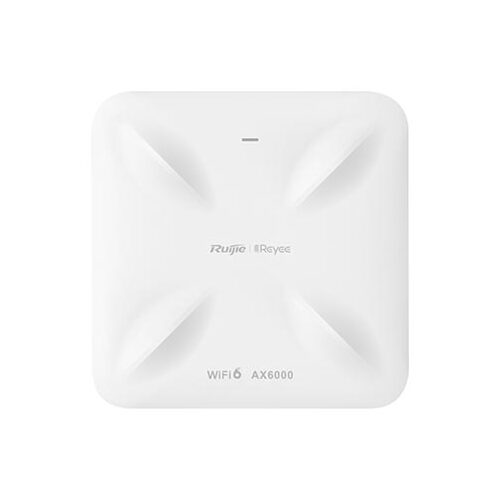

Wi-Fi 6 Access Point AX6000 802.11ax Dual Bands 5.95 Gbps

57MM-AP11 Ruijie No. RG-RAP2260H

$512.00
RRP $689.00
SAVE $177.00 (26%)
In Stock


Calculate Shipping



Free pick-up from store - $0.00
Free pickup from Gordon Macdonald's Wollongong Store. 93 Auburn Street, Wollongong NSW 2500. Open 06.30-16.30 Mon-Fri, and 07.30-11.00 Sat.

The 57MM-AP11 is a cost-effective ultra high-performance multi-gigabit Wi-Fi 6 ceiling/wall mount access point for covering large indoor areas with gigabit Wi-Fi coverage. Suitable for use in multi-network commercial, hotel and other large indoor environments, the AP11 will provide seamless high-speed bidirectional internet coverage. The AP11 is an AX6000 Wi-Fi 6 dual band ceiling/wall mount Wi-Fi access point supporting 802.11ax with 5.95 Gbps and allows up to 512 users per access point.

* Power consumption ≤ 40W, cannot be powered by standard PoE+ swicthes or Power Inserters. Please use 57MM-APPI-60 Power Inserter or a 12V DC 2 Amp plug pack with 2.1mm x 5.5mm DC jack (center positive



Features and Benefits

  • Wi-Fi 6 (802.11ax) supporting speeds up to 5952 Mbps (Concurrent, high-speed wireless access of 1148Mbps at 2.4GHz and 4804Mbps at 5Ghz)
  • Compliant with 802.11a/b/g/n/ac/ax Wi-Fi protocols
  • Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimising and maintenance on Ruijie Cloud App.
  • Featuring 2 x LAN ethernet ports supporting multi-gigabit Ethernet (2.5GE) ports to break through the bottleneck of transmission performance.
  • Perfect for use in commercial spaces, hotels, car parks, schools, etc.
  • Up to 512 simultaneous users (per AP)



(57MM-AP11)

Specifications

Basic Feature
Wi-Fi Standards Wi-Fi 6 (IEEE 802.11ax)
Wi-Fi 5 (IEEE 802.11ac Wave 2)
Wi-Fi 4 (IEEE 802.11n)
IEEE 802.11a
IEEE 802.11b/g
MIMO 2.4GHz, 4×4, MU-MIMO
5GHz, 4×4, MU-MIMO
Max. Wi-Fi Speed 2.4GHz: 1148Mbps
5GHz: 4804Mbps
Antenna 8
Antenna Type Built-In Omnidirectional
Antenna Gain 2.4 GHz: 3 dBi
5 GHz: 3 dBi
Transmit Power EIRP:
≤35dBm (2.4GHz)
≤36dBm (5GHz)
country-specific restrictions apply
Thailand:
2400 MHz~2483.5 MHz ≤ 20 dBm
5150 MHz~5350 MHz ≤ 23 dBm
5470 MHz~5725 MHz ≤ 25 dBm
5725 MHz~5850 MHz ≤ 30 dBm
Fixed Ports 2 x 100/1000/2500 Base-T ports
1 × Reset button
1 x DC port
Max. Clients 512
Recommended Clients 130
Max. SSIDs 8
Recommended Wi-Fi
Coverage Radius
2.4GHz: 40 meters
5GHz: 70 meters
The Wi-Fi coverage is related to the installation environment of the access point.
Max. Wi-Fi Coverage Radius 150 meters
Operation Frequency Bands 802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz
802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz , 5.725 GHz to
5.850 GHz
country-specific restrictions apply
Software Feature
WLAN Basic Features
Power Adjustment Yes
Frequency Bandwidth 2.4 GHz: Auto/20/40 MHz
5 GHz: Auto/20/40/80/160 MHz
Roaming Layer 2 roaming
Layer 3 roaming
OFDMA Yes
Beamforming Yes
WMM Yes
Radar Signal Detection and
Frequency Hopping (DFS)
Yes
WLAN Security
Max Wi-Fi Password Length 16 Digits
Security Mode WPA-PSK, WPA2-PSK, WPA/WPA2-PSK
Blacklist and Whitelist Yes
Enhanced User Experience
Wi-Fi Optimization Yes
STA Limit Yes
Removing Low-RSSI STAs Yes
Adjusting Sending Rate
of Beacon and Probe
Response
Yes
Syslog Recording Why
Users Lose Connection
Yes
Auto Channel and Power
Adjustment on Cloud
Yes
RSSI Threshold for STA
Access
Yes
Load Balancing Yes
Networks
Network Access Mode PPPoE Client
DHCP Client
Static IP
VLAN Yes
DHCP Server Yes
Adjusting Sending Rate
of Beacon and Probe
Response
Yes
System
Cloud Management Yes
APP Management Yes
APP Upgrade Yes
APP Restart Yes
Scheduled Restart Yes
Default Access/Password 10.44.77.253
No Password Required by Default
Local Upgrade Yes
Online Upgrade Yes
Dual-bin Backup Yes
Factory Reset Yes
Language Chinese
English
System Log Yes
Diagnostics Yes
Network Check Yes
Physical
LED Indicator 1 × System LED indicator
Buttons 1 × Reset button
Dimensions (W × D × H) 230 mm x 230 mm x 49.5 mm (Without Mounting Bracket)
Weight ≤ 1.80 kg (Without Mounting Bracket)
DC Port Dimensions Outer Diameter: 5.5 mm
Inner Diameter: 2.1 mm
Length: 10 mm
Installation Ceiling-Mountable
Mounting Bracket
Dimensions (W × D × H)
120 mm x 120 mm x 8.7 mm
Mounting Hole Pattern 53 mm x 53 mm
Mounting Hole Diameter 6.5 mm
Pole Diameter NA
Power Supplies IEEE 802.3bt (Type 3) PoE
DC 12V/2A
Power Consumption ≤ 40W
PoE Power Budget NA
Environmental
Operating Temperature 0°C to 40°C
Storage Temperature -40°C to 70°C
Operating Humidity 5% to 95% Noncondensing
Storage Humidity 5% to 95% Noncondensing
IP(Ingress Protection) NA
Port Surge 4kV
MTBF >400000H
SKU 57MM-AP11
Shipping Weight 0.2500kg
Shipping Width 0.230m
Shipping Height 0.100m
Shipping Length 0.230m
Shipping Cubic 0.000476100m3
