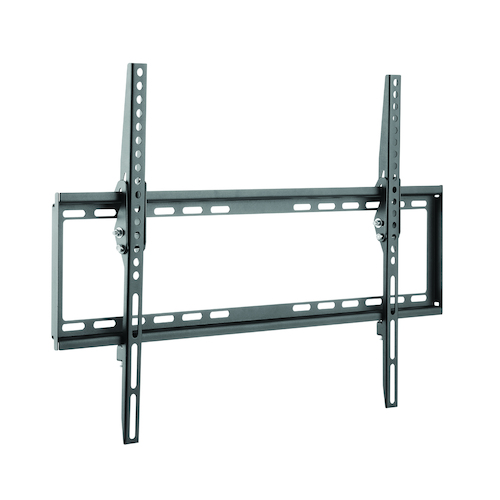

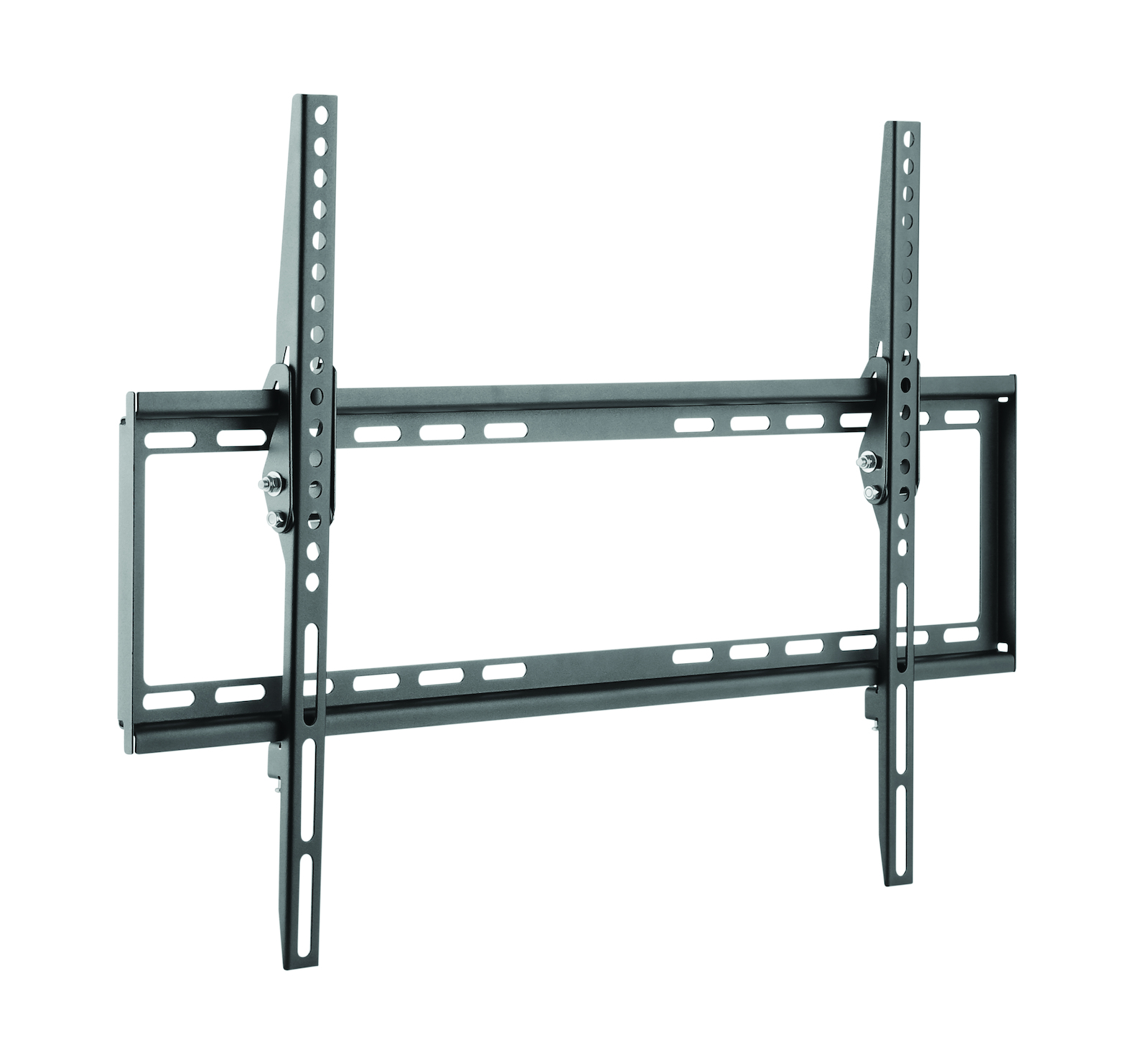

The 04MM-TB06LP low profile TV flush and tilt mount bracket comes with a super-low profile of only 20.5 mm. Used with the mounting arm accessories that come with it, it can be tilted -8 degrees easily. It comes with a 35kg load rating and can accommodate 37 to 70 inches with its full wall-mounting back plate. Also compatible with all hole patterns including VESA standard.


  • 20.5mm super low profile
  • Flush mount wall bracket 37-70 inch with full wall mounting back plate
  • Can be tilted -8 degrees by using supplied mounting arm accessories
  • 35kg load rating
  • Compatible with all hole patterns including VESA standard
Material Steel, plastic
Surface Finish Powder coating
Colour Fine Texture Black
Dimensions 20.5x665x422mm
Fit Screen Size 37"-70"
Fit Curved TV No
Weight Capacity 35kg
Strength Tested 3 times approved
Mounting Hole Pattern Universal
VESA Compatible 200x200, 300x300, 400x200, 400x400, 600x400
Max. VESA 402x620mm
Panel Type Detachable Panel
Screen Freely Tilting Yes
Tilt Range 0°~-8°
Profile 20.5mm
Installation Solid wall, double stud
Wall Plate Type Fixed wall plate
Freely Height Adjustable No
AV Component Shelf No
Cable Management Yes
Anti-theft No
Motorized No
By Function Tilting
Bubble Level Mount No
Brand Matchmaster
Shipping Weight 4.5000kg
Shipping Width 0.850m
Shipping Height 0.100m
Shipping Length 0.250m
Shipping Cubic 0.021250000m3
