HDMI Extender, 1x HDMI Loop Out, 1x Cat5e/6 50m Output with IR and PoC - 34MM-2K50

In Stock

Calculate Shipping

HDMI Extender with 1x HDMI input, 1x HDMI output and 1x CAT5e/6 extended output with bi-directional IR control and POC


  • HDMI loop out port allows for cascading additional extenders or a local TV connection
  • Supports power over cable function POC. Only one power supply needed at the source. RX unit is powered by the Transmitter through the CAT5e/6 connection
  • 1x IR transmitter and 1x IR receiver included
  • Capacity for 1080p/60Hz HDMI1.3 to 50m.
  • 5V DC 1 Amp Power Supply included
  • Compact design for easy and flexible installation

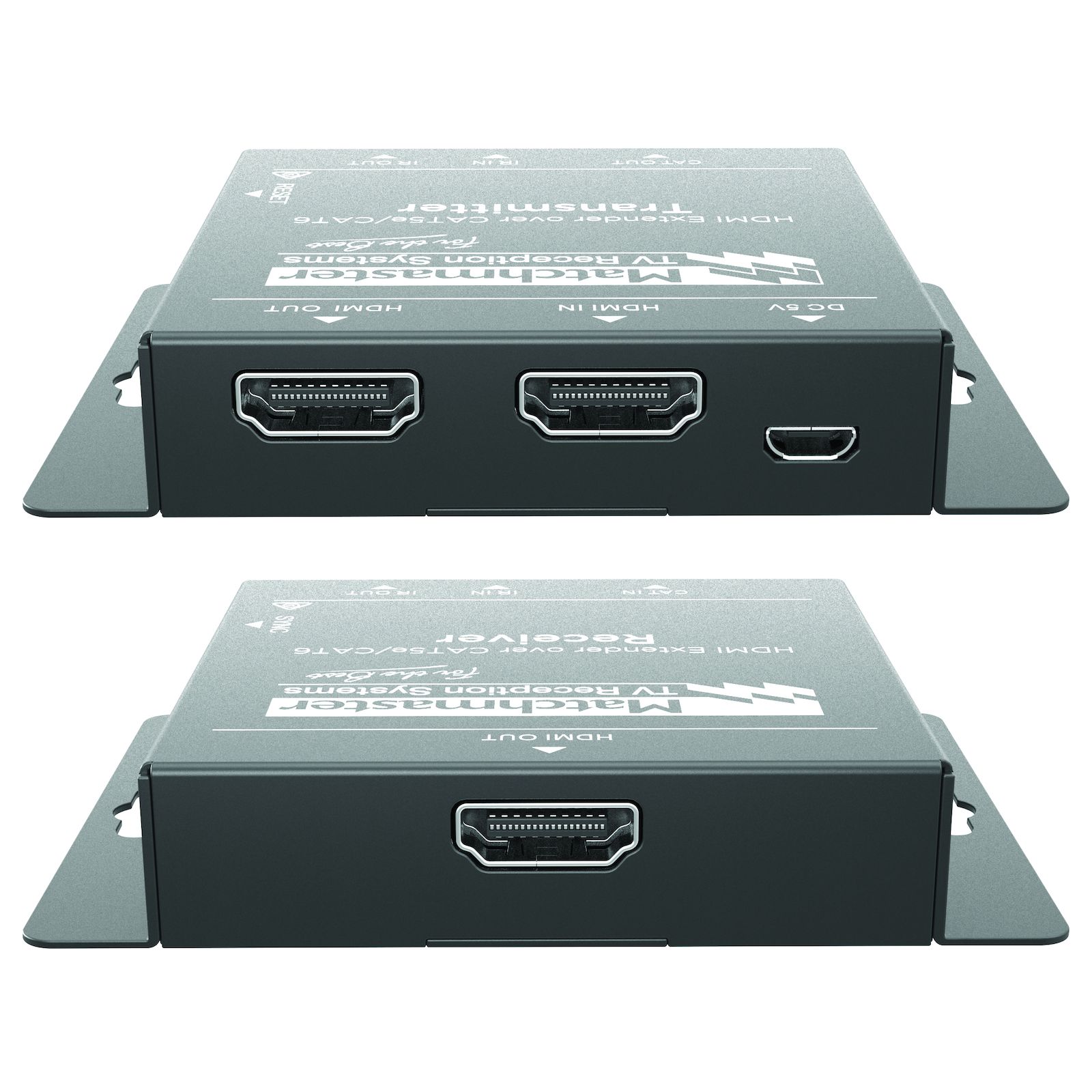

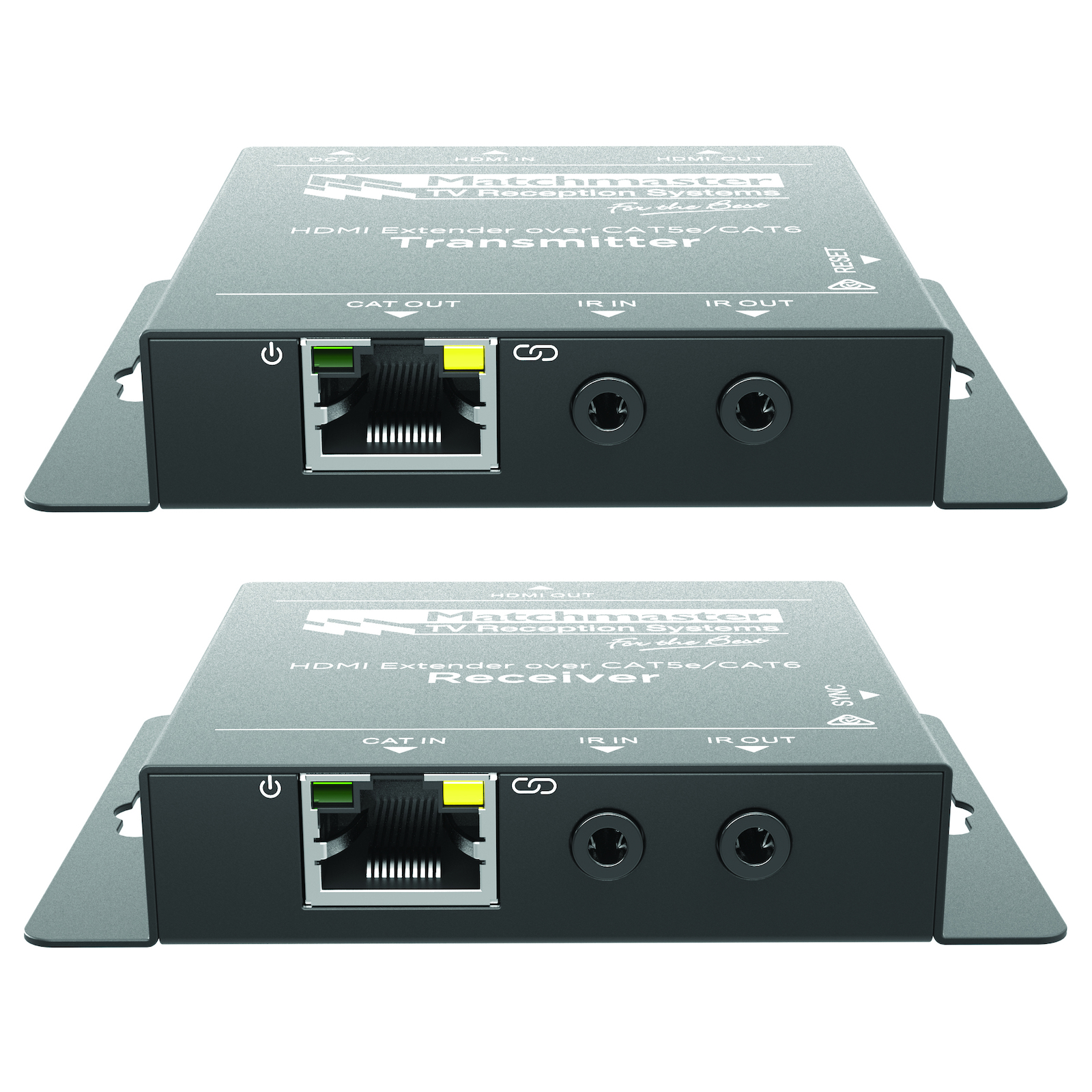

  Transmitter Receiver
Input (1) HDMI (1) CAT
Input Connector (1) 19-pin type-A female HDMI (1) RJ45
Output (1) HDMI; (1) CAT (1) HDMI
Output Connector (1) 19-pin type-A female HDMI, (1) RJ45 (1) 19-pin type-A female HDMI
Control (1) IR IN, (1) IR OUT (1) IR IN, (1) IR OUT
Control Connector (2) 3.5mm mini jacks (2) 3.5mm mini jacks
Transmission Distance 1080p@60Hz≤50m
HDMI Standard HDMI 1.3, HDCP 1.4 compliant
EDID Management Built-in EDID
Power Supply Input: 100VAC~240VAC, 50/60Hz; Output: 5VDC 1A
Power 4W (Max)
Work Temperature -10~55°C
Relative Humility 10%-90%
Dimensions (WxHxD) 66x16.8x66 mm
Weight Transmitter: 36g; Receiver: 38g
SKU 34MM-2K50
Brand Matchmaster
