HDMI EXTENDER OVER CAT6 50M HDMI 2.00 18Gb HDCP 2.2

$377.00
In Stock


Calculate Shipping



Free pick-up from store - $0.00
Free pickup from Gordon Macdonald's Wollongong Store. 93 Auburn Street, Wollongong NSW 2500. Open 06.30-16.30 Mon-Fri, and 07.30-12.00 Sat.

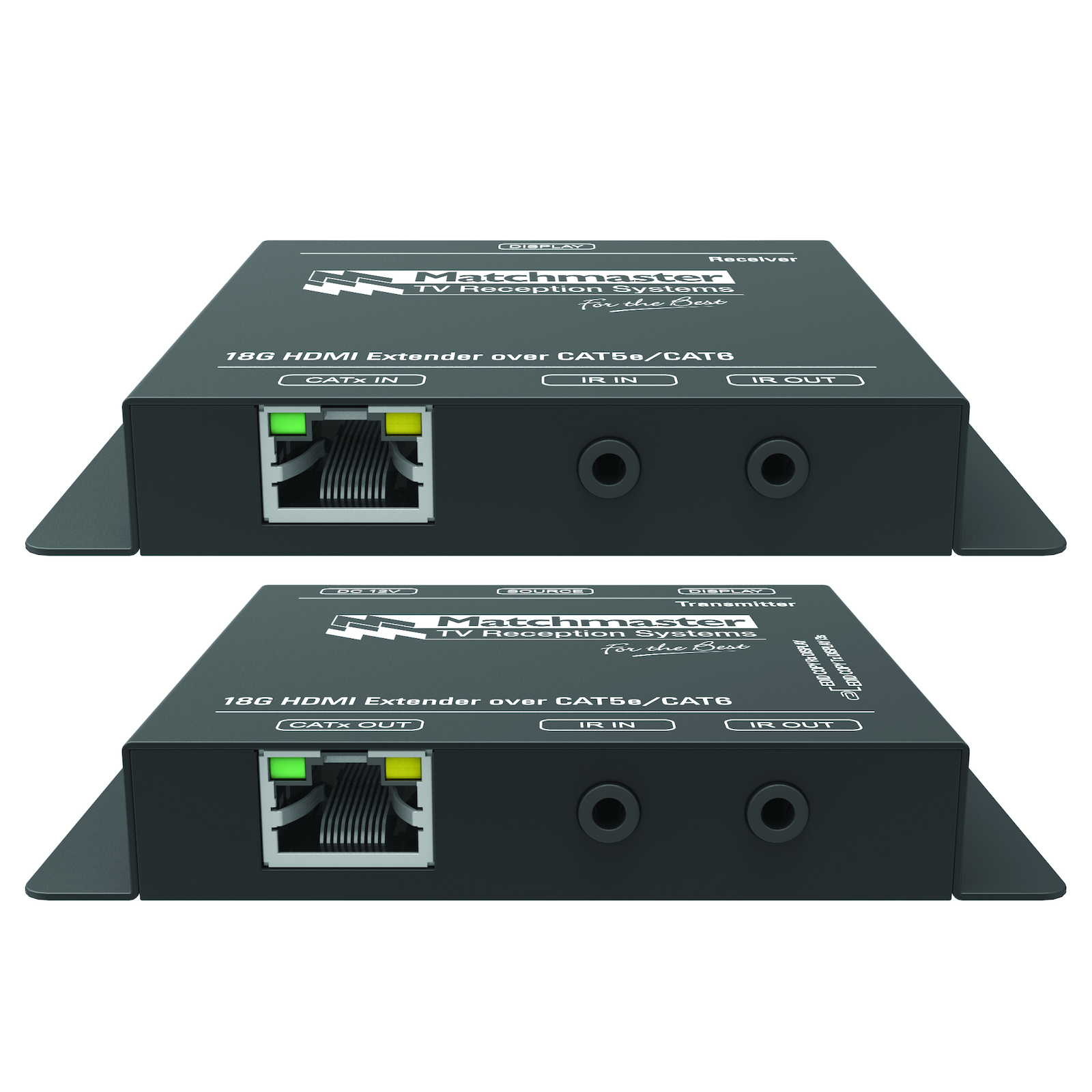

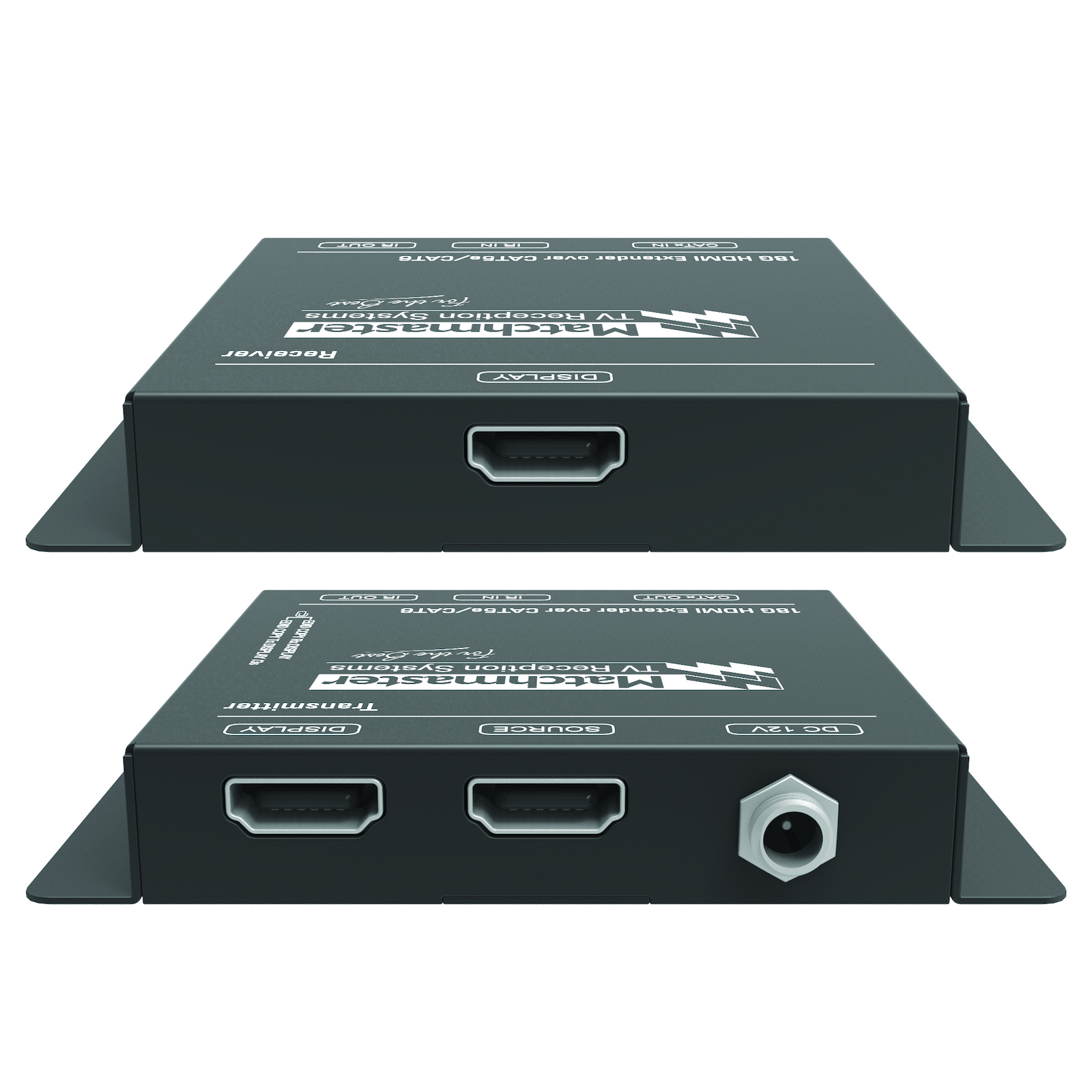

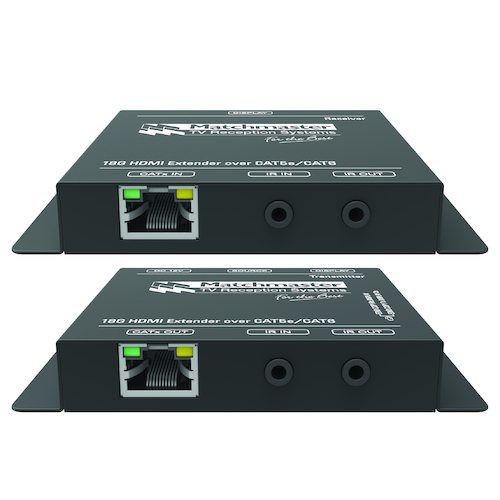

4K HDR HDMI Transmitter and Receiver over 1 x CAT6 up to 50M supporting 18Gbps and HDCP 2.2. Can be used to extend your 4K signal to a second TV with remote IR control without loss of video or audio quality.Features an HDMI loop out for local TV connection and POC (power over cable) needing only one power supply at source end. Supports 3D signal. Foxtel and MySky compliant IR receiver and transmitter included.

(34MM-4K50)

  • Extend 4K HDR Ultra High definition picture and sound from an HDMI source up to 50M using a single CAT6 cable
  • HDMI loop out port allows for cascading additional extenders or local TV connection
  • Supports copying of EDID signature from either the receiver display or loop out display.
  • Supports remote IR control from extender to source using supplied IR accessories (compatible with Foxtel and MySky IR remotes)
  • Supports power over cable function 'POC'. Only one power supply needed at source end.
  • HDMI 2.0 HDCP 2.2/HDCP 1.4 and DVI 1.0 compliant

Specifications

  Transmitter Receiver
Input (1) SOURCE (1) CATx IN
Input Connector (1) 19-pin type-A female HDMI (1) RJ45
Output (1) DISPLAY; (1) CAT x OUT (1) DISPLAY
Output Connector (1) 19-pin type-A female HDMI, (1) RJ45 (1) 19-pin type-A female HDMI
Control (1) IR IN, (1) IR OUT (1) IR IN, (1) IR OUT
Control Connector (2) 3.5mm mini jacks (2) 3.5mm mini jacks
General
Video Resolution Up to 4K@60Hz 4:4:4, HDR 10
HDMI Audio Format Supports LPCM 2ch, LPCM 5.1ch, LPCM 7.1ch, Dolby Digital 2ch, Dolby Digital 5.1ch, DTS 2ch, DTS 5.1ch, DTS 96/24 5.1ch.
Transmission Distance

4K/1080p ≤ 70 meters (230ft)
Note that the CATx cable length should not be less than 15 meters for best video output

HDMI Version HDMI V2.0
HDCP Version HDCP 2.2 compliant. (The HDCP of output follows the HDCP version of display device.)
Power Supply Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC 1A
Power Consumption 4W (Max)
Work Temperature -25~70°C
Relative Humility 10%-90%
Dimensions (WxHxD) 80 x16.8 80mm
Weight Tx/Rx: 70g
SKU 34MM-4K50
Brand Matchmaster
