5MP HD Dome IP PoE Camera IP66 3.6mm Fixed lens IK10 Vandal Rated - 50MM-CD003

In Stock

Calculate Shipping

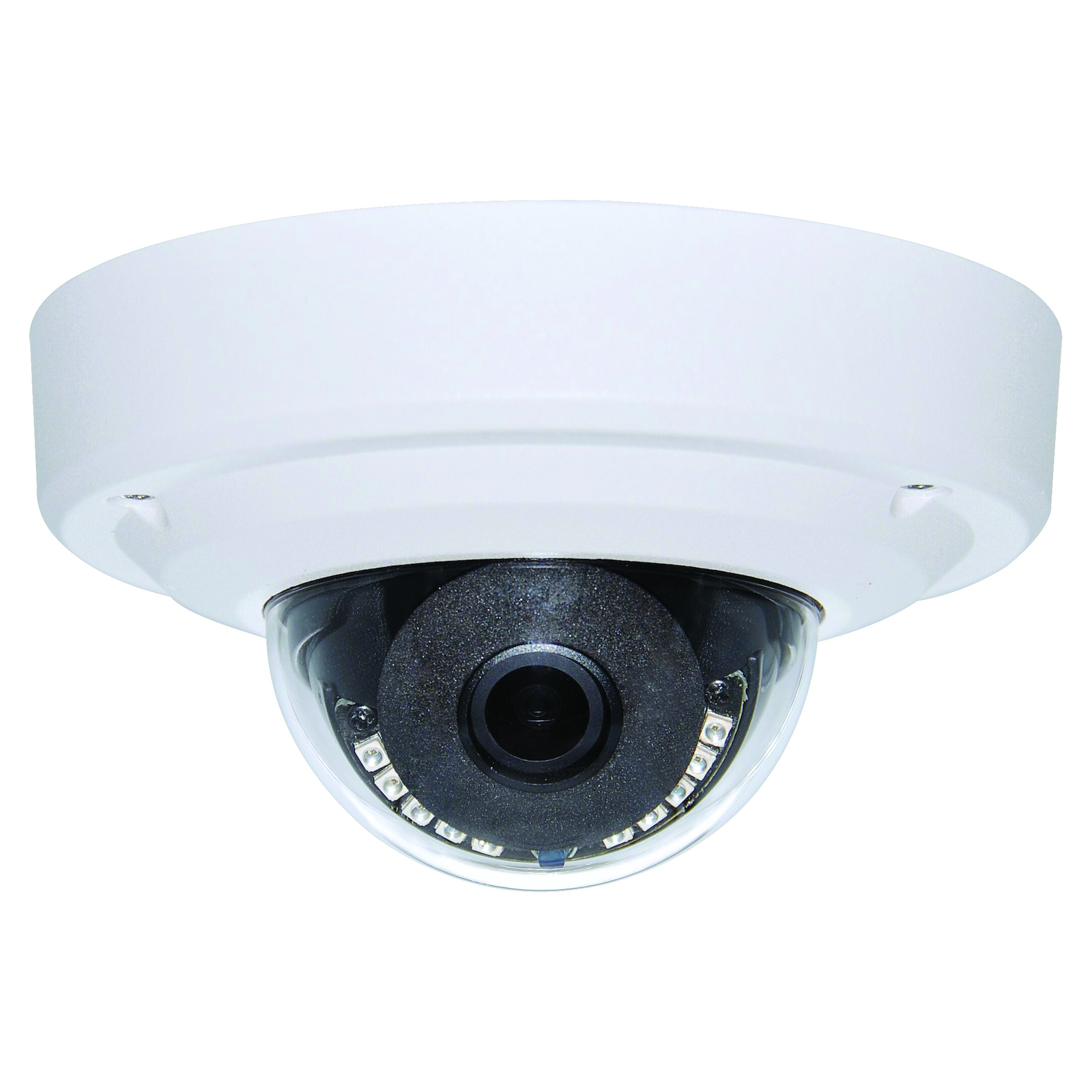

CD003 is a 5MP IK10 rated vandal resistant IP PoE dome camera suited for use both indoor and outdoors where maximum camera protection is required. The CD003 is IP66 waterproof rated and features an IR range up to 15m. Featuring a 3.6mm fixed lens with a 1/2.8" Sony IMX335 Low light CMOS sensor.


  • ONVIF 17.06 compatible for simple communication and mobile viewing
  • 5MP resolution 2592 x 1944 at 15 frames per second or 4MP at 25 frames per second
  • Fixed 3.6mm lens with a 1/2.8" Sony IMX335 Low light CMOS sensor
  • 10 Array IR Leds allowing 10-15m IR range
  • Supports RTSP/FTP/DHCP/DDNS/NTP/SMTP/NFS protocols
  • Supports H.265/H.264 video standards
Image Sensor 1/2.8" Sony IMX335 CMOS
Effective Pixels 2592x1944 (HxV)
Electronic Shutter AUTO, 1/25s ~ 1/100000s
Min. Illumination 0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night Auto/Color/(B/W)/Timing
WDR Digital WDR
White Balance Auto
Other AGC, 2/3 DNR, Motion Detection, Privacy Mask, Mirror, Flip
Embedded Solution Mstar MSC316DM
Video Standard H.265/H.264
Video Resolution MainStream: 15fps @ 5MP (2592x1944), 5fps @ 4MP/ 3MP, 30fps @ 1080P/ 720P
Sub stream: D1/ VGA(640x480)/ 360P/ QVGA@25fps
Video Bitrates 512Kbps - 6Mbps, VBR/CBR
Audio Standard G.711-u/G.711-a
IR Led
IR Led 10 Array IR Leds
IR Distance 10-15 meters
Focal Length 3.6mm fixed lens
Optional Function
PoE, Audio, Alarm In/Out, SD card, etc.
Network Services
P2P Yes
Web IE, Firefox 32bit ESR
Media CMS, Android, iOS
ONVIF 17.06 compatible
Network Port 1-RJ45, 100Mbps, PoE optional
Power Supply 12V DC ± 10%
Power Consumption <5W
Operating Temp. -30°C-(+60)°C, 10%-90%RH
SKU 50MM-CD003
Brand Matchmaster
