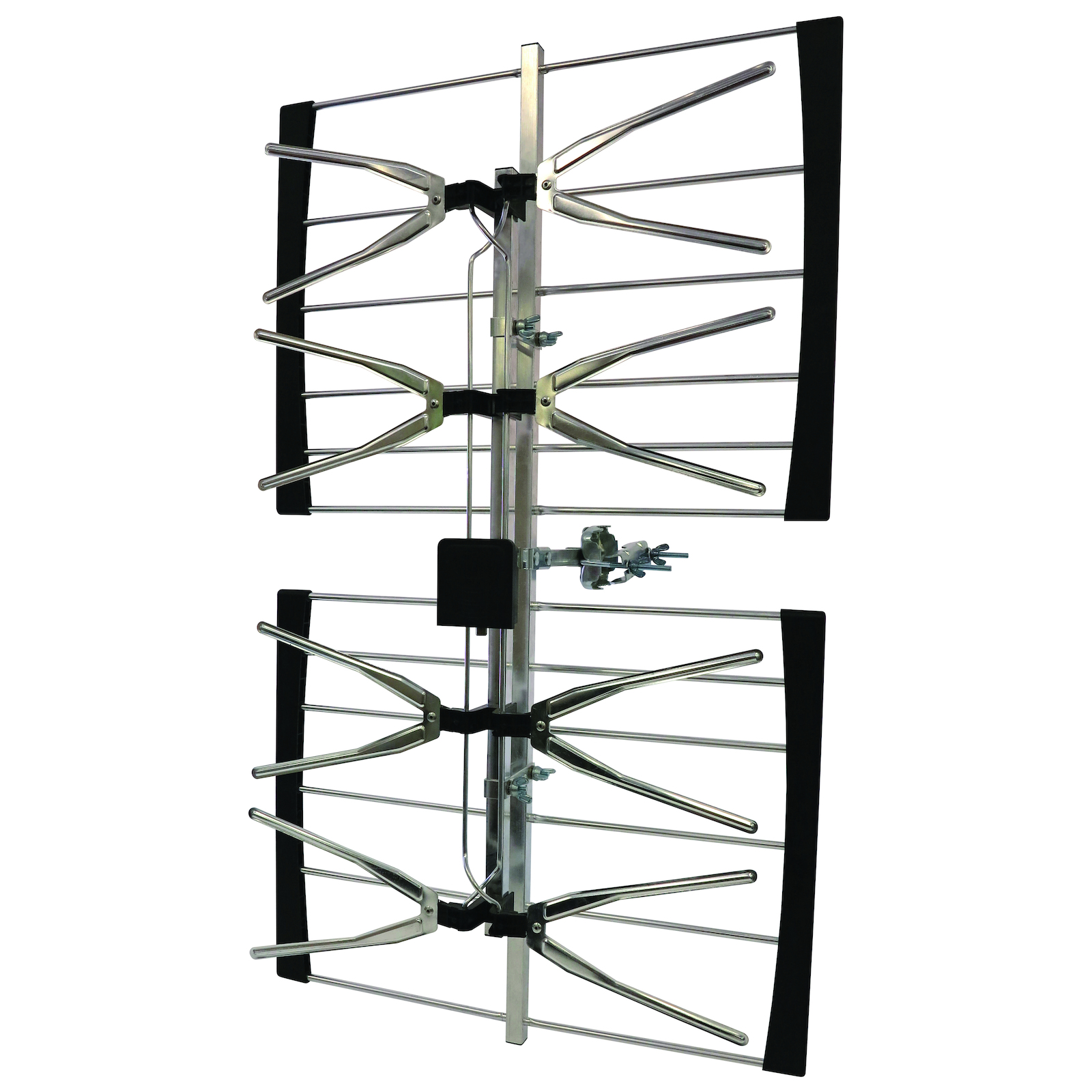

TV ANTENNA UHF(21-69) 36EL X-TYPE MAGNA PHASED ARRAY - 02MM-MDU36
$79.00
RRP $86.90
SAVE $7.90 (9%)
In Stock
Matchmaster premium VHF/UHF & Combination antennas, suitable for metropolitan & rural areas using VHF, UHF or combination broadcasts. Heavy duty construction with ‘F’ type baluns to improve signal quality. Various models can be used in horizontal or vertical broadcast areas. Matchmaster antennas feature built in Low Pass Filters either at 230MHz, 652MHz or 694MHz depending on model to prevent 4G (LTE) interference.
(02MM-MDU36)
Features and Benefits
- 694MHz low pass 4G/5G LTE filter > 30dB at 750 MHz
- High gain phased array for optimum reception
- 12dB Maximum gain
- Receives UHF Channels 28-51
Specifications
| Elements | 36 | |
|---|---|---|
| Band | UHF | |
| Channels | (28-51) | |
| Frequency Range | 520-694MHz | |
| Maximum Gain | 12dB | |
| Front/Back Ratio | 20dB | |
| Half Power Beam Width Horizontal | 48° | |
| Half Power Beam Width Vertical | 29° | |
| Cable Connection | 'F' Type | |
| Packing Type/Unit | Inner Outer |
1 5 |
| SKU | 02MM-MDU36 |
| Brand | Matchmaster |
| Shipping Weight | 2.5000kg |
| Shipping Width | 0.870m |
| Shipping Height | 0.120m |
| Shipping Length | 0.530m |
| Shipping Cubic | 0.055332000m3 |
